MSI Crosshair 16 Max HX 2026 vs MSI Prestige 14 AI+ D3M Comparison

Laptop to replace

 Change

MSI Crosshair 16 Max HX 2026

16 inches | April 2026

Speed 6

Size 4

Display 6.5

Gaming 5

CHECK AT AMAZON

 Change

MSI Prestige 14 AI+ D3M

14 inches | January 2026

Speed 5

Size 9

Display 4.5

Gaming 2.5

CHECK AT AMAZON

MSI Crosshair 16 Max HX 2026 vs MSI Prestige 14 AI+ D3M Comparison Overview

MSI Crosshair 16 Max...

See at AMAZON

MSI Prestige 14 AI+...

See at AMAZON

MSI Crosshair 16 Max...

See at AMAZON

MSI Prestige 14 AI+...

See at AMAZON

In this review, we will be comparing Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M, two laptops by MSI. MSI Crosshair 16 Max HX 2026 was introduced to market in April 2026 and MSI Prestige 14 AI+ D3M was launched in January 2026. There is only 3 months difference between Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M so we are expecting this to be a fair comparison regarding age and technology level.

Click for Available Configurations of the Laptops

Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M are members of MSI's series of laptops. Below you can find the latest models from this series.

MSI Series History

	Release Date	Screen Size	Dimensions	Weight
MSI Crosshair 16 Max HX 2026	April 2026	16.0"	363 x 269.7 x 21.95-23.85 mm	2.2 kg (4.85 lbs)
MSI Stealth 16 AI+ 2026	January 2026	16.0"	354 x 246 x 16.65-19.99 mm	1.99 kg (4.39 lbs)
MSI Prestige 16 Flip AI+ C3M	January 2026	16.0"	357.7 x 254.3 x 11.9-13.9 mm	1.66 kg (3.66 lbs)
MSI Prestige 14 Flip AI+ D3M	January 2026	14.0"	315.6 x 221.9 x 11.9-13.9 mm	1.37 kg (3.02 lbs)
MSI Prestige 16 AI+ C3M	January 2026	16.0"	357.7 x 254.3 x 11.9-13.9 mm	1.59 kg (3.51 lbs)
MSI Prestige 14 AI+ D3M	January 2026	14.0"	315.6 x 221.9 x 11.9-13.9 mm	1.32 kg (2.91 lbs)
MSI Prestige 13 AI+ A3M	January 2026	13.3"	299 x 210 x 15.9 mm	0.89 kg (1.96 lbs)
MSI Crosshair 16 HX AI 2026	January 2026	16.0"	359 x 266.4 x 21.8-27.9 mm	2.5 kg (5.51 lbs)

Here is a brief look at the main features of MSI Crosshair 16 Max HX 2026 and MSI Prestige 14 AI+ D3M before getting into our more detailed comparison.

MSI Crosshair 16 Max HX 2026 Key Specs

Launched in April 2026
16.0" IPS LCD, 16:10 Aspect Ratio Display
CPU: Intel Core Ultra 7 251HX
GPU: GeForce RTX 5060 Laptop 8GB
16GB Ram
363 x 269.7 x 21.95-23.85 mm (14.29 x 10.62 x 0.86-0.94 inches)
Weight: 2.2 kg (4.85 lbs)

MSI Prestige 14 AI+ D3M Key Specs

Launched in January 2026
14.0" OLED, 16:10 Aspect Ratio Display
CPU: Intel Core Ultra 7 355
GPU: Intel Xe3 Graphics
16GB Ram
315.6 x 221.9 x 11.9-13.9 mm (12.43 x 8.74 x 0.47-0.55 inches)
Weight: 1.32 kg (2.91 lbs)

Let's read on the following sections in order to better understand in detail how Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M compares and decide which one is better for you.

**This post contains affiliate links and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Reasons to choose MSI Crosshair 16 Max HX 2026 over MSI Prestige 14 AI+ D3M

Display Size	16 inches vs 14 inches	Larger Screen Estate
Refresh Rate	240 Hz vs 60 Hz	Smoother media experience
Screen PPI	189 ppi vs 162 ppi	More pixels per inch
Screen Resolution	2560 x 1600 pixels vs 1920 x 1200 pixels	Higher pixel count screen
Screen Type	Matte vs Glossy	potentially less reflections on screen
GPU Type	Dedicated vs Integrated	Dedicated GPU unit
Upgradable RAM	Yes vs No	More RAM Options
Number of USB-A Ports	3x USB 3.2 vs 2x USB 3.2	Connect more device at the same time
Ethernet RJ45 Port	Yes vs No	Connects to the local network via Ethernet RJ45
Numeric Pad	Yes vs No	Fast way to input numbers

Reasons to choose MSI Prestige 14 AI+ D3M over MSI Crosshair 16 Max HX 2026

Weight	1.32 kg vs 2.20 kg	0.88 kg lighter
Screen-to-Body Ratio	~81.2% vs ~75.8%	Larger screen area ratio
Side Bezel Thickness	7.1 mm vs 9.2 mm	2.1 mm thinner bezels
Response Time	1 ms vs 3 ms	Faster Response screen
CPU Fabrication Process	2 nm vs 3 nm	Newer Generation CPU
GPU Fabrication Process	3 nm vs 4 nm	Newer Generation GPU
RAM BUS	PCI-E Gen 4.0 (4x) vs PCI-E Gen 5.0 (4x)	Faster RAM
Number of Microphones	3 vs 2	Better Sound capture
WiFi Standard	v7 vs v6E	More advanced Wi-fi connectivity
Bluetooth	v6.0 vs v5.3	More advanced Bluetooth connectivity
Fingerprint Sensor	Yes vs No	Easy login with fingerprint
Webcam Resolution	1920 x 1080 vs 1280 x 720	Higher Resolution Camera
Number of USB-C Ports	2x USB 4.0 vs 1x USB 4.0	Connect more device at the same time

Common Strengths of MSI Prestige 14 AI+ D3M and MSI Crosshair 16 Max HX 2026

Launch Dates	April 2026 vs January 2026	Both laptops are recent models
Fast Charging Support	Yes vs Yes	Charge the battery in a shorter time
RAM Type	DDR5 vs LPDDR5X	Fast RAM type
Upgradable Storage	Yes vs Yes	Option to increase the Storage size
SSD Type	NVMe vs NVMe	Faster Data Transfers
Thunderbolt Port	v4 vs v4	Fast data and power transfer via Thunderbolt Port
HDMI Output	1x HDMI 2.1 vs 1x HDMI 2.1	Connect to External Displays via HDMI cable
VGA Output	No vs No	Connect to External Displays via VGA cable
Keyboard Backlight	Yes vs Yes	Easily see the keys under low light

Common Weaknesses of MSI Prestige 14 AI+ D3M and MSI Crosshair 16 Max HX 2026

Touchscreen Capability	No vs No	No Touchscreen Capability

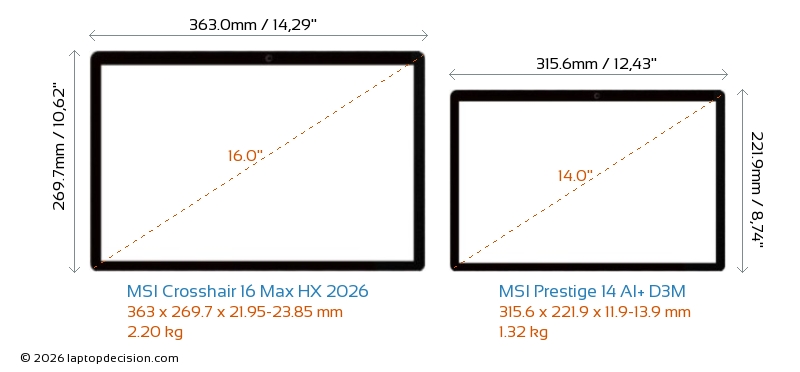

MSI Crosshair 16 Max HX 2026 vs MSI Prestige 14 AI+ D3M: Physical Specs Comparison

In this section, we will be comparing the physical specifications and body features of the MSI Crosshair 16 Max HX 2026 and the MSI Prestige 14 AI+ D3M.

Physical Specs
Weight	2.2 kg (4.85 lbs)	1.32 kg (2.91 lbs)
Surface Area	979 cm2 (151.8 inches2)	700 cm² (108.6 inches²)
Screen to Surface Ratio	~75.8%	~81.2%
Side Bezel Thickness	~9.2 mm	~7.1 mm
Weight per Inch of Screen	0.14 kg/inch	0.09 kg/inch
	0.308 lbs/inch	0.198 lbs/inch
Colors	Black	Gray

Comparison of the MSI Crosshair 16 Max HX 2026 and the MSI Prestige 14 AI+ D3M External Dimensions

Weight

Crosshair 16 Max HX 2026 weighs 2.2 kg (4.85 lbs), whereas the Prestige 14 AI+ D3M weighs 1.32 kg (2.91 lbs). There is a notable difference in weight between these two laptops. However, it's important to consider that comparing their weights directly may not provide a complete picture since they also have different display sizes.

Weight Comparison

MSI Crosshair 16 Max HX 2026

Avg: 16.0-16.9"

MSI Prestige 14 AI+ D3M

Avg: 14.0-14.9"

Thickness Comparison

MSI Crosshair 16 Max HX 2026

Avg: 16.0-16.9"

MSI Prestige 14 AI+ D3M

Avg: 14.0-14.9"

Another value that we use for comparing the weights of the laptops is the Weight per Inch of Screen, which is calculated by dividing the total weight of the model with its usable diagonal screen size. This value for the MSI Crosshair 16 Max HX 2026 is 0.14 kg/inch.In comparison, this value for the MSI Prestige 14 AI+ D3M is 0.09 kg/inch.Here are some of the best performing laptops in this area:

Microsoft Surface Go 4: 0.05 kg/inch
LG Gram SuperSlim 15.6 2023: 0.06 kg/inch
Asus ProArt PZ13 HT5306: 0.06 kg/inch
Asus Zenbook A14 UX3407: 0.06 kg/inch
Microsoft Surface Pro 12: 0.06 kg/inch
Asus ProArt PZ14 HT7407: 0.06 kg/inch
Dell Latitude 7330: 0.07 kg/inch
Lenovo ThinkPad X1 Nano Gen 2: 0.07 kg/inch

MSI Crosshair 16 Max HX 2026 vs MSI Prestige 14 AI+ D3M: Internals Comparison

CPU Comparison

CPU Model	Intel Core Ultra 7 251HX Intel Core Ultra 9 275HX Intel Core Ultra 9 290HX Plus	Intel Core Ultra 7 355 Intel Core Ultra X7 358H
Base Frequency	2.9 GHz	2.3 GHz
Turbo Frequency	5.1 GHz	4.7 GHz
Number of Cores	18 (6P + 12E)	8 (4P + 4E)
Number of Threads	18	8
L3 Cache	30 MB	12 MB
Integrated GPU	Arc Graphics (4-Cores)	Intel Xe3 Graphics
CPU Fabrication Process	3 nm	2 nm

Above you can see the CPU options and the CineBench and GeekBench test scores for both laptops, which gives an idea about what kind of performance difference you may experience between the MSI Crosshair 16 Max HX 2026 and MSI Prestige 14 AI+ D3M.

You may also read reviews of latest laptops with the same CPUs and compare them:

Laptops with: Intel Core Ultra 7 251HX

MSI Raider 16 HX B2W Compare

Laptops with: Intel Core Ultra 7 355

GPU Comparison

GPU Model	GeForce RTX 5060 Laptop 8GB GeForce RTX 5070 Laptop 8GB	Intel Xe3 Graphics
TGP (Total Graphics Power)	115 W
Nvidia Optimus	MUX
Type	Dedicated	Integrated
FLOPS	18.4 TFLOPS
Memory Size	8 GB	System Shared
Memory Type	GDDR7	LPDDR5X
Memory Bus	128 bit
Memory Speed	~24 Gbps	8.53 Gbps
Shading Units Cores	3328
TMUs	104
ROPs	48

GPU is as critical as the CPU for graphic heavy applications and the table above gives a picture of how the two GPU compares. FLOPS is a measure of a GPU's performance based on the number of floating-point arithmetic calculations that the processor can perform within a second. MSI Crosshair 16 Max HX 2026 has a FLOPS value of 18.4 TFLOPS whereas the MSI Prestige 14 AI+ D3M ' has a FLOPS value of . If graphical performance of the laptop is important for your use type, the MSI Crosshair 16 Max HX 2026 may be the better choice between these two setups.

RAM Comparison

RAM	16GB 32GB 64GB 96GB 128GB	16GB 32GB 64GB
Memory Bus	2x8 GB	2x8 GB
RAM Clock	6400 MHz	8533 MHz
RAM Type	DDR5	LPDDR5X
Upgradable	Yes	No
Max RAM Size	128 GB
Total Slots	2

Both laptops, the Crosshair 16 Max HX 2026 and the Prestige 14 AI+ D3M, come with similar RAM capacities of 16 GB, providing comparable performance in memory-intensive tasks.

LOCAL LLM Compatibility Evaluation

There is no evaluation yet.

BATTERY

BATTERY	80 Wh	81 Wh
Battery Type	Li-Po	Li-Po
Replaceable	No	No
Fast Charging	Yes	No
Charging Port Position	Left	Left
Charge Power	240 W	65 W

On the other hand, the Prestige 14 AI+ D3M features a higher battery capacity of 81 Wh, delivering longer usage time compared to the Crosshair 16 Max HX 2026's 80 Wh.

Battery Comparison

MSI Crosshair 16 Max HX 2026

Avg: 16.0-16.9"

MSI Prestige 14 AI+ D3M

Avg: 14.0-14.9"

STORAGE
With a larger storage capacity up to 4 TB, the Crosshair 16 Max HX 2026 provides more space for storing files and applications compared to the Prestige 14 AI+ D3M's max. storage capacity of 2 TB.

Storage Options	1 TB, 2 TB, 4 TB	512 GB, 1 TB, 2 TB
Upgradable	Yes	Yes
Total Slots	2	1
Storage type	SSD (M2)	SSD (M2)
NVMe	Yes	Yes
Memory Bus	PCI-E Gen 5.0 (4x)	PCI-E Gen 4.0 (4x)

If your budget allows, we recommend opting for the largest possible disk size, considering the potential increase in storage capacity needs in the future. However, please keep in mind the question 'What will the laptop be used for?' when making this decision. Of course, you can later upgrade the hard disk capacity by getting a larger disk. However, if your laptop has only one disk slot, it may not be as straightforward as a RAM upgrade, where you simply add or replace a module, as moving or cloning files to a new disk may be necessary.

MSI Crosshair 16 Max HX 2026 vs MSI Prestige 14 AI+ D3M: Display Comparison

The display is an essential aspect to consider when comparing the MSI Crosshair 16 Max HX 2026 and MSI Prestige 14 AI+ D3M since its is the component that you interact the most and significantly impact the experience.

Screen Area and Dimensions

Now let's look at the comparison of the actual display areas of both laptops below, keeping the bezels around the screens out of the equation. Crosshair 16 Max HX 2026 has a display size of 16.0".On the other hand, Prestige 14 AI+ D3M has a smaller 14.0" display.The total usable screen area of the Crosshair 16 Max HX 2026 is 742cm² / 115inch² whereas the Prestige 14 AI+ D3M's total usable screen area is 568cm² / 88inch².

PPI (Pixels per Inch)
Additionally, the Crosshair 16 Max HX 2026 features a higher pixel density with 189 pixels per inch (PPI), ensuring sharper image details.

Screen PPI (Pixels Per Inch) Comparison

MSI Crosshair 16 Max HX 2026

Avg: 16.0-16.9"

MSI Prestige 14 AI+ D3M

Avg: 14.0-14.9"

Refresh Rate
The Crosshair 16 Max HX 2026 offers a higher refresh rate of 240 Hz, resulting in smoother motion and improved visual experience.

Furthermore, the Prestige 14 AI+ D3M boasts a faster response time of 1.0 ms, reducing motion blur for fast-paced content.

Brightness
Both Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M offer the same maximum brightness of 400 nits (cd/m²).

Brightness Comparison

MSI Crosshair 16 Max HX 2026

Avg: 16.0-16.9"

MSI Prestige 14 AI+ D3M

Avg: 14.0-14.9"

MSI Crosshair 16 Max HX 2026 vs MSI Prestige 14 AI+ D3M Connectivity Comparison

In terms of connectivity,

Wifi
Prestige 14 AI+ D3M features a more advanced Wi-Fi standard v7, providing faster and more reliable wireless connections compared to Crosshair 16 Max HX 2026 (v6E).

Below, you'll find a Wi-Fi Versions Table, along with their release dates and speeds, to provide a brief overview of its development.

Wi-Fi Versions and Speeds

Standard	Speed	Release Date	Network	Frequency Bands (GHz)
Wi-Fi 7	up to 40 Gbps (5 GB/s)	2023	802.11be	2.4, 5, 6
Wi-Fi 6E	up to 9.6 Gbps (1.2 GB/s)	2020	802.11ax	2.4, 5, 6
Wi-Fi 6	up to 9.6 Gbps (1.2 GB/s)	2019	802.11ax	2.4, 5
Wi-Fi 5	up to 6.93 Gbps (866.25 MB/s)	2014	802.11ac	2.4, 5
Wi-Fi 4	up to 600 Mbps (75 MB/s)	2009	802.11n	2.4, 5

* Please note that the provided transfer rates are maximum theoretical values, and real-life performance may vary based on environmental factors.

USB
Both Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M have USB-A ports. Crosshair 16 Max HX 2026 has 3x USB 3.2 USB-A ports, while Prestige 14 AI+ D3M has 2x USB 3.2 USB-A ports.
Both Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M have USB Type-C ports. Crosshair 16 Max HX 2026 has 1x USB 4.0 USB Type-C ports, while Prestige 14 AI+ D3M has 2x USB 4.0 USB Type-C ports.

Below, you'll find a table of USB ports, along with their release dates and speeds.
To mitigate the confusion caused by generation names, the USB Implementers Forum (USB-IF) suggests using marketing names like USB 5Gbps, USB 10Gbps, and so forth, based on their respective transfer rates.

USB Type and Speeds

USB Type	Version	Speed	Date	Other Features/Explanations
USB4	Gen 4 (2.0)	80 Gbps	2022	Also known as USB 80Gbps
USB4	Gen 3×2	40 Gbps	2019	Also known as USB 40Gbps
USB 3.2	3.2 Gen 2x2	20 Gbps	2019	Double the data transfer rates of Gen 2
USB 3.2	3.2 Gen 2	10 Gbps	2017	Previously known as USB 3.1
USB 3.2	3.2 Gen 1	5 Gbps	2017	Previously known as USB 3.0
USB 3.1	3.1 Gen 2	10 Gbps	2013	Faster data transfer rates
USB 3.0	3.1 Gen 1	5 Gbps	2010	SuperSpeed USB, improved data transfer rates
USB 2.0	2.0	480 Mbps	2000	High-speed data transfer
USB 1.0	1.0	1.5 Mbps	1996	Original USB standard

Thunderbolt
Both Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M are equipped with Thunderbolt 4 ports.

HDMI
Both Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M feature an HDMI port (1x HDMI 2.1) for connecting to external monitors.

Below, you'll find a comparison table detailing different HDMI versions, including their bandwidth, color depth, maximum resolution, and release dates. This information can be helpful in understanding the capabilities of each HDMI version and choosing the most suitable one for your needs.

HDMI Comparison Table

HDMI Version	Maximum Resolution	Bandwidth (Gbps)	Color Depth (bits)	Release Date
HDMI 2.1-2.1b	7680 x 4320 *(8K)* @ 60p 3840 x 2160 *(4K)* @ 120p	48.0	48	2017
HDMI 2.0-2.0b	3840 x 2160 *(4K)* @ 60p	18.0	48	2013
HDMI 1.4-1.4b	3840 x 2160 *(4K)* @ 30p	10.2	48	2009
HDMI 1.3-1.3a	2560 x 1440 @ 60p	10.2	48	2006
HDMI 1.0-1.2a	1920 x 1200 @ 60p	4.95	24	2002

* Please note that the provided resolution values represent the maximum supported resolution, and actual display quality may depend on other factors such as source content and connected devices.

SD Card Reader
Neither Crosshair 16 Max HX 2026 nor Prestige 14 AI+ D3M has an SD Card Reader.

Audio Jack
Both Crosshair 16 Max HX 2026 and Prestige 14 AI+ D3M are equipped with a 3.5mm Audio Jack, providing seamless connection to headphones and speakers.

To summarize the connectivity and ports details, please refer to the table below to see them listed.

Connectivity and Ports
WiFi Standard (latest: v7)	v6E	v7
Bluetooth (latest: v6.2)	v5.3	v6.0
USB-A (latest: 3.2)	3x USB 3.2	2x USB 3.2
USB Type-C (latest: USB4 2.0)	1x USB 4.0	2x USB 4.0
Thunderbolt (latest: 5)	Thunderbolt 4	Thunderbolt 4
HDMI (latest: 2.1)	1x HDMI 2.1	1x HDMI 2.1
Display Port (latest: v2.0)	No	No
VGA	No	No
Fingerprint Sensor	No	Yes
Optical Drive	No	No
Audio Jack 3.5mm	Yes	Yes
Ethernet RJ45	Yes	No
SD CardReader	No	No
Proprietary Charging Port	Yes	No
