In this review, we will be comparing Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026, two laptops by MSI. MSI Crosshair 16 Max HX 2026 was introduced to market in April 2026 and MSI Crosshair A16 HX AI 2026 was launched in January 2026. There is only 3 months difference between Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 so we are expecting this to be a fair comparison regarding age and technology level.

Click for Available Configurations of the Laptops

Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 are members of MSI's series of laptops. Below you can find the latest models from this series.

MSI Series History

	Release Date	Screen Size	Dimensions	Weight
MSI Crosshair 16 Max HX 2026	April 2026	16.0"	363 x 269.7 x 21.95-23.85 mm	2.2 kg (4.85 lbs)
MSI Stealth 16 AI+ 2026	January 2026	16.0"	354 x 246 x 16.65-19.99 mm	1.99 kg (4.39 lbs)
MSI Prestige 16 Flip AI+ C3M	January 2026	16.0"	357.7 x 254.3 x 11.9-13.9 mm	1.66 kg (3.66 lbs)
MSI Prestige 14 Flip AI+ D3M	January 2026	14.0"	315.6 x 221.9 x 11.9-13.9 mm	1.37 kg (3.02 lbs)
MSI Prestige 16 AI+ C3M	January 2026	16.0"	357.7 x 254.3 x 11.9-13.9 mm	1.59 kg (3.51 lbs)
MSI Prestige 14 AI+ D3M	January 2026	14.0"	315.6 x 221.9 x 11.9-13.9 mm	1.32 kg (2.91 lbs)
MSI Prestige 13 AI+ A3M	January 2026	13.3"	299 x 210 x 15.9 mm	0.89 kg (1.96 lbs)
MSI Crosshair 16 HX AI 2026	January 2026	16.0"	359 x 266.4 x 21.8-27.9 mm	2.5 kg (5.51 lbs)

Here is a brief look at the main features of MSI Crosshair 16 Max HX 2026 and MSI Crosshair A16 HX AI 2026 before getting into our more detailed comparison.

MSI Crosshair 16 Max HX 2026 Key Specs

Launched in April 2026
16.0" IPS LCD, 16:10 Aspect Ratio Display
CPU: Intel Core Ultra 7 251HX
GPU: GeForce RTX 5060 Laptop 8GB
16GB Ram
363 x 269.7 x 21.95-23.85 mm (14.29 x 10.62 x 0.86-0.94 inches)
Weight: 2.2 kg (4.85 lbs)

MSI Crosshair A16 HX AI 2026 Key Specs

Launched in January 2026
16.0" IPS LCD, 16:10 Aspect Ratio Display
CPU: AMD Ryzen 9 8940HX
GPU: GeForce RTX 5060 Laptop 8GB
16GB Ram
359 x 266.4 x 21.8-27.9 mm (14.13 x 10.49 x 0.86-1.1 inches)
Weight: 2.5 kg (5.51 lbs)

Let's read on the following sections in order to better understand in detail how Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 compares and decide which one is better for you.

**This post contains affiliate links and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Reasons to choose MSI Crosshair 16 Max HX 2026 over MSI Crosshair A16 HX AI 2026

Weight	2.20 kg vs 2.50 kg	0.3 kg lighter
CPU Fabrication Process	3 nm vs 5 nm	Newer Generation CPU
Max Total RAM	128 GB vs 96 GB	Higher RAM potential
USB-C Port Type	v4.0 vs v3.2	Faster USB-C connection
Thunderbolt	v4 vs No	Support audio, data, power and video all through one single port

Reasons to choose MSI Crosshair A16 HX AI 2026 over MSI Crosshair 16 Max HX 2026

Screen-to-Body Ratio	~77.6% vs ~75.8%	Larger screen area ratio
Side Bezel Thickness	7.2 mm vs 9.2 mm	2 mm thinner bezels

Common Strengths of MSI Crosshair A16 HX AI 2026 and MSI Crosshair 16 Max HX 2026

Launch Dates	April 2026 vs January 2026	Both laptops are recent models
Screen Coating	Matte vs Matte	Less reflections on the screen
Fast Charging Support	Yes vs Yes	Charge the battery in a shorter time
Upgradable RAM	Yes vs Yes	Option to increase the RAM size
RAM Type	DDR5 vs DDR5	Fast RAM type
Upgradable Storage	Yes vs Yes	Option to increase the Storage size
SSD Type	NVMe vs NVMe	Faster Data Transfers
Wi-Fi Standard	v6E vs v6E	Fast and Reliable Wi-Fi Connections
HDMI Output	1x HDMI 2.1 vs 1x HDMI 2.1	Connect to External Displays via HDMI cable
VGA Output	No vs No	Connect to External Displays via VGA cable
Ethernet RJ45 Port	Yes vs Yes	Fast connection to Network via ethernet cable
Numeric Pad	Yes vs Yes	Fast way to input numbers
Keyboard Backlight	Yes vs Yes	Easily see the keys under low light

Common Weaknesses of MSI Crosshair A16 HX AI 2026 and MSI Crosshair 16 Max HX 2026

Touchscreen Capability	No vs No	No Touchscreen Capability
HDR Support	No vs No	No HDR Support
Fingerprint Sensor	No vs No	No fingerprint login feature

MSI Crosshair 16 Max HX 2026 vs MSI Crosshair A16 HX AI 2026: Physical Specs Comparison

In this section, we will be comparing the physical specifications and body features of the MSI Crosshair 16 Max HX 2026 and the MSI Crosshair A16 HX AI 2026.

Physical Specs
Weight	2.2 kg (4.85 lbs)	2.5 kg (5.51 lbs)
Surface Area	979 cm2 (151.8 inches2)	956 cm² (148.2 inches²)
Screen to Surface Ratio	~75.8%	~77.6%
Side Bezel Thickness	~9.2 mm	~7.2 mm
Weight per Inch of Screen	0.14 kg/inch	0.16 kg/inch
	0.308 lbs/inch	0.352 lbs/inch
Colors	Black	Gray

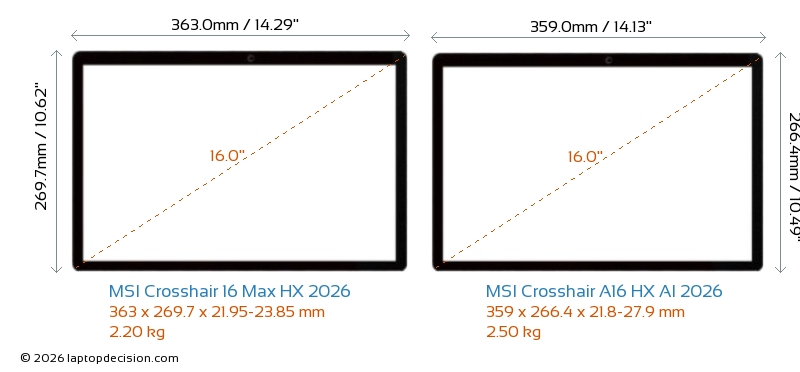

Comparison of the MSI Crosshair 16 Max HX 2026 and the MSI Crosshair A16 HX AI 2026 External Dimensions

Weight

Crosshair 16 Max HX 2026 weighs 2.2 kg (4.85 lbs), whereas the Crosshair A16 HX AI 2026 weighs 2.5 kg (5.51 lbs). There is a notable difference in weight between these two laptops. The weight difference between the two laptops is not significant.

Weight Comparison

Displays size 16.0-16.9 inches

MSI Crosshair 16 Max HX 2026

MSI Crosshair A16 HX AI 2026

Min

Average

Max

Thickness Comparison

Displays size 16.0-16.9 inches

MSI Crosshair 16 Max HX 2026

MSI Crosshair A16 HX AI 2026

Min

Average

Max

Another value that we use for comparing the weights of the laptops is the Weight per Inch of Screen, which is calculated by dividing the total weight of the model with its usable diagonal screen size. This value for the MSI Crosshair 16 Max HX 2026 is 0.14 kg/inch.In comparison, this value for the MSI Crosshair A16 HX AI 2026 is 0.16 kg/inch.Here are some of the best performing laptops in this area:

Microsoft Surface Go 4: 0.05 kg/inch
LG Gram SuperSlim 15.6 2023: 0.06 kg/inch
Asus ProArt PZ13 HT5306: 0.06 kg/inch
Asus Zenbook A14 UX3407: 0.06 kg/inch
Microsoft Surface Pro 12: 0.06 kg/inch
Asus ProArt PZ14 HT7407: 0.06 kg/inch
Dell Latitude 7330: 0.07 kg/inch
Lenovo ThinkPad X1 Nano Gen 2: 0.07 kg/inch

MSI Crosshair 16 Max HX 2026 vs MSI Crosshair A16 HX AI 2026: Internals Comparison

CPU Comparison

CPU Model	Intel Core Ultra 7 251HX Intel Core Ultra 9 275HX Intel Core Ultra 9 290HX Plus	AMD Ryzen 9 8940HX
Base Frequency	2.9 GHz	2.4 GHz
Turbo Frequency	5.1 GHz	5.3 GHz
Number of Cores	18 (6P + 12E)	16
Number of Threads	18	32
L3 Cache	30 MB	64 MB
Integrated GPU	Arc Graphics (4-Cores)	Radeon 610M
CPU Fabrication Process	3 nm	5 nm

Above you can see the CPU options and the CineBench and GeekBench test scores for both laptops, which gives an idea about what kind of performance difference you may experience between the MSI Crosshair 16 Max HX 2026 and MSI Crosshair A16 HX AI 2026.

You may also read reviews of latest laptops with the same CPUs and compare them:

Laptops with: Intel Core Ultra 7 251HX

MSI Raider 16 HX B2W Compare

Laptops with: AMD Ryzen 9 8940HX

GPU Comparison

GPU Model	GeForce RTX 5060 Laptop 8GB GeForce RTX 5070 Laptop 8GB	GeForce RTX 5060 Laptop 8GB GeForce RTX 5070 Laptop 8GB
TGP (Total Graphics Power)	115 W	115 W
Nvidia Optimus	MUX	MUX
Type	Dedicated	Dedicated
FLOPS	18.4 TFLOPS	18.4 TFLOPS
Memory Size	8 GB	8 GB
Memory Type	GDDR7	GDDR7
Memory Bus	128 bit	128 bit
Memory Speed	~24 Gbps	~24 Gbps
Shading Units Cores	3328	3328
TMUs	104	104
ROPs	48	48

GPU is as critical as the CPU for graphic heavy applications and the table above gives a picture of how the two GPU compares. FLOPS is a measure of a GPU's performance based on the number of floating-point arithmetic calculations that the processor can perform within a second. MSI Crosshair 16 Max HX 2026 has a FLOPS value of 18.4 TFLOPS whereas the MSI Crosshair A16 HX AI 2026 ' has a FLOPS value of 18.4 TFLOPS.

RAM Comparison

RAM	16GB 32GB 64GB 96GB 128GB	16GB 32GB 64GB 96GB
Memory Bus	2x8 GB	2x8 GB
RAM Clock	6400 MHz	5200 MHz
RAM Type	DDR5	DDR5
Upgradable	Yes	Yes
Max RAM Size	128 GB	96 GB
Total Slots	2	2

Both laptops, the Crosshair 16 Max HX 2026 and the Crosshair A16 HX AI 2026, come with similar RAM capacities of 16 GB, providing comparable performance in memory-intensive tasks.

LOCAL LLM Compatibility Evaluation

This quick guide shows what types of large language models (LLMs) each of these laptops could support, based on their respective hardware specifications. It's meant to help you compare their suitability for running AI models locally.

LLM Category	MSI Crosshair 16 Max HX (2026)	MSI Crosshair A16 HX AI (2026)
CPU	Intel Core Ultra 7 251HX	AMD Ryzen 9 8940HX
GPU	GeForce RTX 5060 Laptop 8GB	GeForce RTX 5060 Laptop 8GB
Memory	16 GB ; 8 GB VRAM	16 GB ; 8 GB VRAM
Available for LLM total	~19.3 GB (6.5 GB VRAM 12.8 GB RAM)	~19.3 GB (6.5 GB VRAM 12.8 GB RAM)
Small Models (1-3B): Examples: Phi-2, Qwen-1.8B Requires ~2 GB memory	✔ Runs Smoothly fits in your 8 GB VRAM	✔ Runs Smoothly fits in your 8 GB VRAM
Medium Models (7-8B): Examples: Mistral-7B, Qwen-7B Requires ~5 GB memory	✔ Runs Well fits in your 8 GB VRAM	✔ Runs Well fits in your 8 GB VRAM
Large Models
13-15B Models (e.g., Llama 3 14B, Qwen1.5 14B) Requires ~9 GB memory	⚠ Borderline / Slow doesn't fit in 8 GB VRAM, spills to RAM (VRAM + RAM, slower)	⚠ Borderline / Slow doesn't fit in 8 GB VRAM, spills to RAM (VRAM + RAM, slower)
16-24B Models (e.g., Dense 20B Q4 ~15.5GB) Requires ~14 GB memory	! Not Practical doesn't fit in 8 GB VRAM, spills to RAM (VRAM + RAM, slower)	! Not Practical doesn't fit in 8 GB VRAM, spills to RAM (VRAM + RAM, slower)
24-30B Models (e.g., Dense 30B Q4) Requires ~18 GB memory	! Not Practical doesn't fit in 8 GB VRAM, spills to RAM (VRAM + RAM, slower)	! Not Practical doesn't fit in 8 GB VRAM, spills to RAM (VRAM + RAM, slower)
MoE Models (Mixture-of-Experts) (e.g., Mixtral 8x7B - total ~47B, active ~12-13B) Requires ~24 GB memory	✖ Not Supported exceeds available RAM	✖ Not Supported exceeds available RAM
Extra-Large Models (65B+): Examples: LLaMA2-70B, Qwen1.5-72B Requires ~42 GB memory	✖ Not Supported exceeds available RAM	✖ Not Supported exceeds available RAM

For more detailed LLM evaluation (subcategories, performance ranges, memory breakdown)

MSI Crosshair 16 Max HX (2026)|MSI Crosshair A16 HX AI (2026)

Note: Optimized (e.g., 4-bit) models may run on limited hardware. Performance depends on runtime and setup.

📌 Model Types: Dense 30B Q4 models typically require around 19–22 GB of total VRAM, so they run best on systems with ≥24 GB VRAM. MoE models like Mixtral 8x7B (≈47B total parameters, usually ≈23–26 GB in 4-bit) also need high memory because all experts must be loaded, even though only a few are active per token. They reduce compute cost per token (similar to a ~12–13B dense model), but not memory usage, so they are not practical on 14–16 GB systems.

🚀 Modern NPU (Neural Processing Unit): Modern processors like AMD Ryzen AI and Intel Core Ultra feature NPU and unified memory architecture. NPUs provide modest performance gains (0-30% faster) with better power efficiency compared to iGPU-only execution. Real-world tests show ~3-10 tok/s range on 13B models with 32GB RAM (varies by runtime, quantization, and context), comparable to iGPU but more power-efficient. Note: These figures are examples from various NPU systems; actual performance depends on your specific hardware configuration.

Understanding Performance Categories

The performance descriptions use general categories because actual speed varies greatly based on your specific hardware, model optimization, context length, and runtime software.

Performance Level	Typical Range	User Experience
Runs Smoothly (High-end dGPU)	50+ tok/s	Real-time response. Feels instant, like ChatGPT.
Runs Well (Mid-range dGPU)	20-50 tok/s	Good interactive performance. Slight delay, but usable.
Modest Speed (iGPU/NPU/CPU)	5-20 tok/s	Usable for tasks that don't need instant responses. Noticeable typing delay.
Borderline / Slow (Limited hardware)	2-5 tok/s	Slow-Very slow. Patience required. Better for batch processing.
Not Practical	<2 tok/s	Too slow for regular use. May cause system hangs or instability.

💡 Tip: Your actual results may be higher or lower than these ranges. Test with your specific hardware to know for sure!

⚠️ Note: Performance categorization is based on VRAM capacity and RAM fallback status. GPU type (memory bandwidth, compute power) can also affect actual performance. Currently, we prioritize whether the model fits in VRAM or requires RAM fallback for classification. We may refine this categorization in future updates based on more detailed benchmarks.

BATTERY

BATTERY	80 Wh	90 Wh
Battery Type	Li-Po	Li-Po
Replaceable	No	No
Fast Charging	Yes	Yes
Charging Port Position	Left	Left, Bottom
Charge Power	240 W	240 W

On the other hand, the Crosshair A16 HX AI 2026 features a higher battery capacity of 90 Wh, delivering longer usage time compared to the Crosshair 16 Max HX 2026's 80 Wh.

Battery Comparison

Displays size 16.0-16.9 inches

MSI Crosshair 16 Max HX 2026

MSI Crosshair A16 HX AI 2026

Min

Average

Max

STORAGE
Both laptops, the Crosshair 16 Max HX 2026 and the Crosshair A16 HX AI 2026 have similar max. storage capacities of 4 TB, allowing for ample space to store files and applications.

Storage Options	1 TB, 2 TB, 4 TB	1 TB, 2 TB, 4 TB
Upgradable	Yes	Yes
Total Slots	2	2
Storage type	SSD (M2)	SSD (M2)
NVMe	Yes	Yes
Memory Bus	PCI-E Gen 5.0 (4x)	PCI-E Gen 5.0 (4x)

If your budget allows, we recommend opting for the largest possible disk size, considering the potential increase in storage capacity needs in the future. However, please keep in mind the question 'What will the laptop be used for?' when making this decision. Of course, you can later upgrade the hard disk capacity by getting a larger disk. However, if your laptop has only one disk slot, it may not be as straightforward as a RAM upgrade, where you simply add or replace a module, as moving or cloning files to a new disk may be necessary.

MSI Crosshair 16 Max HX 2026 vs MSI Crosshair A16 HX AI 2026: Display Comparison

The display is an essential aspect to consider when comparing the MSI Crosshair 16 Max HX 2026 and MSI Crosshair A16 HX AI 2026 since its is the component that you interact the most and significantly impact the experience.

Screen Area and Dimensions

Now let's look at the comparison of the actual display areas of both laptops below, keeping the bezels around the screens out of the equation. Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 screens have the same size of 16.0".The total usable screen area of the Crosshair 16 Max HX 2026 is 742cm² / 115inch² whereas the Crosshair A16 HX AI 2026's total usable screen area is 742cm² / 115inch².

PPI (Pixels per Inch)
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 feature the same pixel density with 189 pixels per inch (PPI).

Screen PPI (Pixels Per Inch) Comparison

Displays size 16.0-16.9 inches

MSI Crosshair 16 Max HX 2026

MSI Crosshair A16 HX AI 2026

Min

Average

Max

Refresh Rate
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 offer the same refresh rate of 240 Hz.

Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 boast the same response time of 3.0 ms.

Brightness
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 offer the same maximum brightness of 400 nits (cd/m²).

Brightness Comparison

Displays size 16.0-16.9 inches

MSI Crosshair 16 Max HX 2026

MSI Crosshair A16 HX AI 2026

Min

Average

Max

MSI Crosshair 16 Max HX 2026 vs MSI Crosshair A16 HX AI 2026 Connectivity Comparison

In terms of connectivity,

Wifi
Both laptops offer the same Wi-Fi standard (v6E), ensuring fast and reliable wireless connections.

Below, you'll find a Wi-Fi Versions Table, along with their release dates and speeds, to provide a brief overview of its development.

Wi-Fi Versions and Speeds

Standard	Speed	Release Date	Network	Frequency Bands (GHz)
Wi-Fi 7	up to 40 Gbps (5 GB/s)	2023	802.11be	2.4, 5, 6
Wi-Fi 6E	up to 9.6 Gbps (1.2 GB/s)	2020	802.11ax	2.4, 5, 6
Wi-Fi 6	up to 9.6 Gbps (1.2 GB/s)	2019	802.11ax	2.4, 5
Wi-Fi 5	up to 6.93 Gbps (866.25 MB/s)	2014	802.11ac	2.4, 5
Wi-Fi 4	up to 600 Mbps (75 MB/s)	2009	802.11n	2.4, 5

* Please note that the provided transfer rates are maximum theoretical values, and real-life performance may vary based on environmental factors.

USB
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 feature 3x USB 3.2 USB-A ports.
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 have USB Type-C ports. Crosshair 16 Max HX 2026 has 1x USB 4.0 USB Type-C ports, while Crosshair A16 HX AI 2026 has 1x USB 3.2 USB Type-C ports.

Below, you'll find a table of USB ports, along with their release dates and speeds.
To mitigate the confusion caused by generation names, the USB Implementers Forum (USB-IF) suggests using marketing names like USB 5Gbps, USB 10Gbps, and so forth, based on their respective transfer rates.

USB Type and Speeds

USB Type	Version	Speed	Date	Other Features/Explanations
USB4	Gen 4 (2.0)	80 Gbps	2022	Also known as USB 80Gbps
USB4	Gen 3×2	40 Gbps	2019	Also known as USB 40Gbps
USB 3.2	3.2 Gen 2x2	20 Gbps	2019	Double the data transfer rates of Gen 2
USB 3.2	3.2 Gen 2	10 Gbps	2017	Previously known as USB 3.1
USB 3.2	3.2 Gen 1	5 Gbps	2017	Previously known as USB 3.0
USB 3.1	3.1 Gen 2	10 Gbps	2013	Faster data transfer rates
USB 3.0	3.1 Gen 1	5 Gbps	2010	SuperSpeed USB, improved data transfer rates
USB 2.0	2.0	480 Mbps	2000	High-speed data transfer
USB 1.0	1.0	1.5 Mbps	1996	Original USB standard

Thunderbolt
Crosshair 16 Max HX 2026 is equipped with Thunderbolt 4 port. Crosshair A16 HX AI 2026 does not have Thunderbolt port.

HDMI
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 feature an HDMI port (1x HDMI 2.1) for connecting to external monitors.

Below, you'll find a comparison table detailing different HDMI versions, including their bandwidth, color depth, maximum resolution, and release dates. This information can be helpful in understanding the capabilities of each HDMI version and choosing the most suitable one for your needs.

HDMI Comparison Table

HDMI Version	Maximum Resolution	Bandwidth (Gbps)	Color Depth (bits)	Release Date
HDMI 2.1-2.1b	7680 x 4320 *(8K)* @ 60p 3840 x 2160 *(4K)* @ 120p	48.0	48	2017
HDMI 2.0-2.0b	3840 x 2160 *(4K)* @ 60p	18.0	48	2013
HDMI 1.4-1.4b	3840 x 2160 *(4K)* @ 30p	10.2	48	2009
HDMI 1.3-1.3a	2560 x 1440 @ 60p	10.2	48	2006
HDMI 1.0-1.2a	1920 x 1200 @ 60p	4.95	24	2002

* Please note that the provided resolution values represent the maximum supported resolution, and actual display quality may depend on other factors such as source content and connected devices.

SD Card Reader
Neither Crosshair 16 Max HX 2026 nor Crosshair A16 HX AI 2026 has an SD Card Reader.

Audio Jack
Both Crosshair 16 Max HX 2026 and Crosshair A16 HX AI 2026 are equipped with a 3.5mm Audio Jack, providing seamless connection to headphones and speakers.

To summarize the connectivity and ports details, please refer to the table below to see them listed.

Connectivity and Ports
WiFi Standard (latest: v7)	v6E	v6E
Bluetooth (latest: v6.2)	v5.3	v5.3
USB-A (latest: 3.2)	3x USB 3.2	3x USB 3.2
USB Type-C (latest: USB4 2.0)	1x USB 4.0	1x USB 3.2
Thunderbolt (latest: 5)	Thunderbolt 4	No
HDMI (latest: 2.1)	1x HDMI 2.1	1x HDMI 2.1
Display Port (latest: v2.0)	No	No
VGA	No	No
Fingerprint Sensor	No	No
Optical Drive	No	No
Audio Jack 3.5mm	Yes	Yes
Ethernet RJ45	Yes	Yes
SD CardReader	No	No
Proprietary Charging Port	Yes	Yes
