Lenovo Thinkpad P14s Gen 6 vs Dell Precision 5490 Comparison

Laptop to replace

 Change

Lenovo Thinkpad P14s Gen 6

14 inches | April 2025

Speed 5

Size 9

Display 4

Gaming 3

CHECK AT AMAZON

 Change

Dell Precision 5490

14 inches | February 2024

Speed 5

Size 8.5

Display 4

Gaming 3

CHECK AT AMAZON

Lenovo Thinkpad P14s Gen 6 vs Dell Precision 5490 Comparison Overview

Lenovo Thinkpad P14s...

See at AMAZON

Dell Precision 5490

See at AMAZON

Lenovo Thinkpad P14s...

See at AMAZON

Dell Precision 5490

See at AMAZON

In this review, we will be comparing Thinkpad P14s Gen 6 and Precision 5490, two laptops from Lenovo and Dell. Lenovo Thinkpad P14s Gen 6 was introduced to market in April 2025 and Dell Precision 5490 was launched in February 2024. There is 14 months difference between Thinkpad P14s Gen 6 and Precision 5490 so it would still give an advantage to younger Thinkpad P14s Gen 6.

Click for Available Configurations of the Laptops

Here is a brief look at the main features of Lenovo Thinkpad P14s Gen 6 and Dell Precision 5490 before getting into our more detailed comparison.

Lenovo Thinkpad P14s Gen 6 Key Specs

Launched in April 2025
14.0" IPS LCD, 16:10 Aspect Ratio Display
CPU: AMD Ryzen AI 5 340
GPU: Radeon 840M
16GB Ram
315.9 x 223.7 x 10.9-16.3 mm (12.44 x 8.81 x 0.43-0.64 inches)
Weight: 1.39 kg (3.06 lbs)

Dell Precision 5490 Key Specs

Launched in February 2024
14.0" IPS LCD, 16:10 Aspect Ratio Display
CPU: Intel Core Ultra 5 135H
GPU: RTX A1000 Mobile 6GB
16GB Ram
310.6 x 210.35 x 7.49-18.95 mm (12.23 x 8.28 x 0.29-0.75 inches)
Weight: 1.49 kg (3.29 lbs)

Let's read on the following sections in order to better understand in detail how Thinkpad P14s Gen 6 and Precision 5490 compares and decide which one is better for you.

**This post contains affiliate links and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Reasons to choose Lenovo Thinkpad P14s Gen 6 over Dell Precision 5490

Weight	1.39 kg vs 1.49 kg	0.1 kg lighter
Screen Opening Angle	180° vs 135°	More flexible screen
CPU Fabrication Process	4 nm vs 7 nm	Newer Generation CPU
GPU Fabrication Process	4 nm vs 8 nm	Newer Generation GPU
Upgradable RAM	Yes vs No	More RAM Options
Dolby Atmos Speakers	Yes vs No	3D Surround Sound Support
HDMI Port	1x HDMI 2.1 vs No	Connect to external monitors directly via HDMI cable
Ethernet RJ45 Port	Yes vs No	Connects to the local network via Ethernet RJ45
Touchpad Size	11.5 x 6.1 cm vs 10.5 x 6.5 cm	Larger Touchpad Area

Reasons to choose Dell Precision 5490 over Lenovo Thinkpad P14s Gen 6

Screen-to-Body Ratio	~87% vs ~80.4%	Larger screen area ratio
Side Bezel Thickness	4.6 mm vs 7.2 mm	2.6 mm thinner bezels
Contrast Rate	1000:1 vs 800:1	more pleasing colors
Max Brightness	500 nits vs 400 nits	Brighter Screen
GPU FLOPS	4.92 TFLOPS vs 3 TFLOPS	Dedicated GPU unit
GPU Type	Dedicated vs Integrated	Flexible cable positions
Charging Port Position	Left, Right vs Left	Connect more device at the same time
Number of USB-C Ports	4x USB 4.0 vs 2x USB 4.0	Read & Write SD Cards with the built-in reader
SD Card Reader	Yes vs No	Better typing feel
Key Travel	1.9 mm vs 1.5 mm

Common Strengths of Dell Precision 5490 and Lenovo Thinkpad P14s Gen 6

Launch Dates	April 2025 vs February 2024	Both laptops are recent models
Screen Coating	Matte vs Matte	Less reflections on the screen
Fast Charging Support	Yes vs Yes	Charge the battery in a shorter time
RAM Type	DDR5 vs LPDDR5X	Fast RAM type
Upgradable Storage	Yes vs Yes	Option to increase the Storage size
SSD Type	NVMe vs NVMe	Faster Data Transfers
Thunderbolt Port	v4 vs v4	Fast data and power transfer via Thunderbolt Port
VGA Output	No vs No	Connect to External Displays via VGA cable
Keyboard Backlight	Yes vs Yes	Easily see the keys under low light

Common Weaknesses of Dell Precision 5490 and Lenovo Thinkpad P14s Gen 6

Touchscreen Capability	No vs No	No Touchscreen Capability
HDR Support	No vs No	No HDR Support

Lenovo Thinkpad P14s Gen 6 vs Dell Precision 5490: Physical Specs Comparison

In this section, we will be comparing the physical specifications and body features of the Lenovo Thinkpad P14s Gen 6 and the Dell Precision 5490.

Physical Specs
Weight	1.39 kg (3.06 lbs)	1.49 kg (3.29 lbs)
Surface Area	707 cm2 (109.6 inches2)	653 cm2 (101.3 inches2)
Screen to Surface Ratio	~80.4%	~87%
Side Bezel Thickness	~7.2 mm	~4.6 mm
Weight per Inch of Screen	0.10 kg/inch	0.11 kg/inch
	0.22 lbs/inch	0.242 lbs/inch
Colors	Black	Black
Cover Opening Angle	180°	135Â°

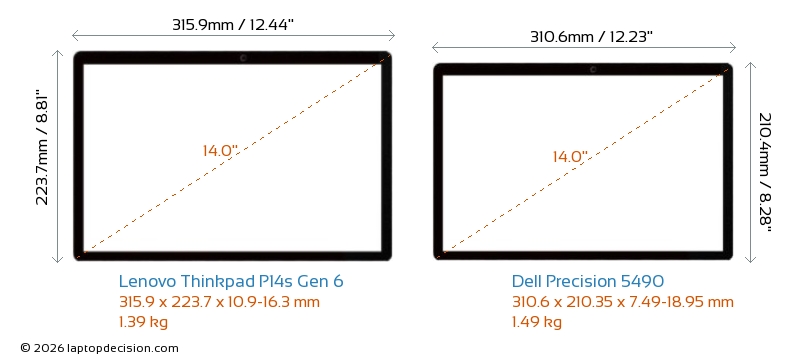

Comparison of the Lenovo Thinkpad P14s Gen 6 and the Dell Precision 5490 External Dimensions

Weight

Thinkpad P14s Gen 6 weighs 1.39 kg (3.06 lbs), whereas the Precision 5490 weighs 1.49 kg (3.29 lbs). There is a notable difference in weight between these two laptops. The weight difference between the two laptops is not significant.

Weight Comparison

Displays size 14.0-14.9 inches

Lenovo Thinkpad P14s Gen 6

Dell Precision 5490

Min

Average

Max

Thickness Comparison

Displays size 14.0-14.9 inches

Lenovo Thinkpad P14s Gen 6

Dell Precision 5490

Min

Average

Max

Another value that we use for comparing the weights of the laptops is the Weight per Inch of Screen, which is calculated by dividing the total weight of the model with its usable diagonal screen size. This value for the Lenovo Thinkpad P14s Gen 6 is 0.10 kg/inch.In comparison, this value for the Dell Precision 5490 is 0.11 kg/inch.Here are some of the best performing laptops in this area:

Microsoft Surface Go 4: 0.05 kg/inch
LG Gram SuperSlim 15.6 2023: 0.06 kg/inch
Asus ProArt PZ13 HT5306: 0.06 kg/inch
Asus Zenbook A14 UX3407: 0.06 kg/inch
Microsoft Surface Pro 12: 0.06 kg/inch
Asus ProArt PZ14 HT7407: 0.06 kg/inch
Dell Latitude 7330: 0.07 kg/inch
Lenovo ThinkPad X1 Nano Gen 2: 0.07 kg/inch

Lenovo Thinkpad P14s Gen 6 vs Dell Precision 5490: Internals Comparison

CPU Comparison

CPU Model	AMD Ryzen AI 5 340 AMD Ryzen AI 7 350 AMD Ryzen AI 9 HX 370	Intel Core Ultra 5 135H Intel Core Ultra 7 155H Intel Core Ultra 7 165H Intel Core Ultra 9 185H
Base Frequency	2.0 GHz	1.7 GHz
Turbo Frequency	4.8 GHz	4.6 GHz
Number of Cores	6 (3P + 3E)	Arc Graphics (7-
Number of Threads	12	18
L3 Cache	16 MB	18 MB
Integrated GPU	Radeon 840M	Arc Graphics (7-Cores)
CPU Fabrication Process	4 nm	7 nm

Above you can see the CPU options and the CineBench and GeekBench test scores for both laptops, which gives an idea about what kind of performance difference you may experience between the Lenovo Thinkpad P14s Gen 6 and Dell Precision 5490.

You may also read reviews of latest laptops with the same CPUs and compare them:

Laptops with: AMD Ryzen AI 5 340

Laptops with: Intel Core Ultra 5 135H

GPU Comparison

GPU Model	Radeon 840M	RTX A1000 Mobile 6GB RTX A2000 Mobile 8GB RTX A3000 Mobile 8GB
Boost CLock Frequency	2900 MHz	1140 MHz
TGP (Total Graphics Power)	15-54 W	50 W
Type	Integrated	Dedicated
FLOPS	3 TFLOPS	4.92 TFLOPS
Memory Size	System Shared	6 GB
Memory Type	DDR5	GDDR6
Memory Speed	5.6 Gbps	~11 Gbps
Shading Units Cores	256	2560
TMUs	16	80
ROPs	8	32

GPU is as critical as the CPU for graphic heavy applications and the table above gives a picture of how the two GPU compares. FLOPS is a measure of a GPU's performance based on the number of floating-point arithmetic calculations that the processor can perform within a second. Lenovo Thinkpad P14s Gen 6 has a FLOPS value of 3 TFLOPS whereas the Dell Precision 5490 ' has a FLOPS value of 4.92 TFLOPS. If graphical performance of the laptop is important for your use type, the Dell Precision 5490 may be the better choice between these two setups.

RAM Comparison

RAM	16GB 32GB 64GB 96GB	16GB 32GB 64GB
Memory Bus	2x8 GB	2x8 GB
RAM Clock	5600 MHz	7467 MHz
RAM Type	DDR5	LPDDR5X
Upgradable	Yes	No
Max RAM Size	96 GB
Total Slots	2

Both laptops, the Thinkpad P14s Gen 6 and the Precision 5490, come with similar RAM capacities of 16 GB, providing comparable performance in memory-intensive tasks.

LOCAL LLM Compatibility Evaluation

This quick guide shows what types of large language models (LLMs) each of these laptops could support, based on their respective hardware specifications. It's meant to help you compare their suitability for running AI models locally.

LLM Category	Lenovo Thinkpad P14s Gen 6	Dell Precision 5490
CPU	AMD Ryzen AI 5 340 (NPU - 50 TOPS)	Intel Core Ultra 5 135H
GPU	Radeon 840M	RTX A1000 Mobile 6GB
Memory	16 GB	16 GB ; 6 GB VRAM
Available for LLM total	~10.5 GB (10.5 GB RAM)	~17.3 GB (4.5 GB VRAM 12.8 GB RAM)
Small Models (1-3B): Examples: Phi-2, Qwen-1.8B Requires ~2 GB memory	✔ Runs Well fits in your 10.5 GB RAM	✔ Runs Well fits in your 6 GB VRAM
Medium Models (7-8B): Examples: Mistral-7B, Qwen-7B Requires ~5 GB memory	✔ Runs Well fits in your 10.5 GB RAM	✔ Modest Speed doesn't fit in 6 GB VRAM, spills to RAM (VRAM + RAM, slower)
Large Models
13-15B Models (e.g., Llama 3 14B, Qwen1.5 14B) Requires ~9 GB memory	✔ Modest Speed fits in your 10.5 GB RAM	! Not Practical doesn't fit in 6 GB VRAM, spills to RAM (VRAM + RAM, slower)
16-24B Models (e.g., Dense 20B Q4 ~15.5GB) Requires ~14 GB memory	✖ Not Supported exceeds available RAM	! Not Practical doesn't fit in 6 GB VRAM, spills to RAM (VRAM + RAM, slower)
24-30B Models (e.g., Dense 30B Q4) Requires ~18 GB memory	✖ Not Supported exceeds available RAM	✖ Not Supported exceeds available RAM
MoE Models (Mixture-of-Experts) (e.g., Mixtral 8x7B - total ~47B, active ~12-13B) Requires ~24 GB memory	✖ Not Supported exceeds available RAM	✖ Not Supported exceeds available RAM
Extra-Large Models (65B+): Examples: LLaMA2-70B, Qwen1.5-72B Requires ~42 GB memory	✖ Not Supported exceeds available RAM	✖ Not Supported exceeds available RAM

For more detailed LLM evaluation (subcategories, performance ranges, memory breakdown)

Lenovo Thinkpad P14s Gen 6|Dell Precision 5490

Note: Optimized (e.g., 4-bit) models may run on limited hardware. Performance depends on runtime and setup.

📌 Model Types: Dense 30B Q4 models typically require around 19–22 GB of total VRAM, so they run best on systems with ≥24 GB VRAM. MoE models like Mixtral 8x7B (≈47B total parameters, usually ≈23–26 GB in 4-bit) also need high memory because all experts must be loaded, even though only a few are active per token. They reduce compute cost per token (similar to a ~12–13B dense model), but not memory usage, so they are not practical on 14–16 GB systems.

🚀 Modern NPU (Neural Processing Unit): Modern processors like AMD Ryzen AI and Intel Core Ultra feature NPU and unified memory architecture. NPUs provide modest performance gains (0-30% faster) with better power efficiency compared to iGPU-only execution. Real-world tests show ~3-10 tok/s range on 13B models with 32GB RAM (varies by runtime, quantization, and context), comparable to iGPU but more power-efficient. Note: These figures are examples from various NPU systems; actual performance depends on your specific hardware configuration.

Understanding Performance Categories

The performance descriptions use general categories because actual speed varies greatly based on your specific hardware, model optimization, context length, and runtime software.

Performance Level	Typical Range	User Experience
Runs Smoothly (High-end dGPU)	50+ tok/s	Real-time response. Feels instant, like ChatGPT.
Runs Well (Mid-range dGPU)	20-50 tok/s	Good interactive performance. Slight delay, but usable.
Modest Speed (iGPU/NPU/CPU)	5-20 tok/s	Usable for tasks that don't need instant responses. Noticeable typing delay.
Borderline / Slow (Limited hardware)	2-5 tok/s	Slow-Very slow. Patience required. Better for batch processing.
Not Practical	<2 tok/s	Too slow for regular use. May cause system hangs or instability.

💡 Tip: Your actual results may be higher or lower than these ranges. Test with your specific hardware to know for sure!

⚠️ Note: Performance categorization is based on VRAM capacity and RAM fallback status. GPU type (memory bandwidth, compute power) can also affect actual performance. Currently, we prioritize whether the model fits in VRAM or requires RAM fallback for classification. We may refine this categorization in future updates based on more detailed benchmarks.

BATTERY

BATTERY	52.5 Wh 57 Wh	72 Wh
Battery Type	Li-Po	Li-Ion
Replaceable	No	No
Fast Charging	Yes	No
Charging Port Position	Left	Left, Right
Charge Power	65 W	100 / 130 W

On the other hand, the Precision 5490 features a higher battery capacity of 72 Wh, delivering longer usage time compared to the Thinkpad P14s Gen 6's 53 Wh.

Battery Comparison

Displays size 14.0-14.9 inches

Lenovo Thinkpad P14s Gen 6

Dell Precision 5490

Min

Average

Max

STORAGE
The Precision 5490 offers a larger max storage capacity of 4 TB, providing more room for storing files and data compared to the Thinkpad P14s Gen 6's storage capacity of 2 TB.

Storage Options	256 GB, 512 GB, 1 TB, 2 TB	256 GB, 512 GB, 1 TB, 2 TB, 4 TB
Upgradable	Yes	Yes
Total Slots	1	2
Storage type	SSD (M2)	SSD (M2)
NVMe	Yes	Yes
Memory Bus	PCI-E Gen 4.0 (4x)	PCI-E Gen 4.0 (4x)

If your budget allows, we recommend opting for the largest possible disk size, considering the potential increase in storage capacity needs in the future. However, please keep in mind the question 'What will the laptop be used for?' when making this decision. Of course, you can later upgrade the hard disk capacity by getting a larger disk. However, if your laptop has only one disk slot, it may not be as straightforward as a RAM upgrade, where you simply add or replace a module, as moving or cloning files to a new disk may be necessary.

Lenovo Thinkpad P14s Gen 6 vs Dell Precision 5490: Display Comparison

The display is an essential aspect to consider when comparing the Lenovo Thinkpad P14s Gen 6 and Dell Precision 5490 since its is the component that you interact the most and significantly impact the experience.

Screen Area and Dimensions

Now let's look at the comparison of the actual display areas of both laptops below, keeping the bezels around the screens out of the equation. Both Thinkpad P14s Gen 6 and Precision 5490 screens have the same size of 14.0".The total usable screen area of the Thinkpad P14s Gen 6 is 568cm² / 88inch² whereas the Precision 5490's total usable screen area is 568cm² / 88inch².

PPI (Pixels per Inch)
Both Thinkpad P14s Gen 6 and Precision 5490 feature the same pixel density with 162 pixels per inch (PPI).

Screen PPI (Pixels Per Inch) Comparison

Displays size 14.0-14.9 inches

Lenovo Thinkpad P14s Gen 6

Dell Precision 5490

Min

Average

Max

Refresh Rate
Both Thinkpad P14s Gen 6 and Precision 5490 offer the same refresh rate of 60 Hz.

Brightness
The Precision 5490 offers a higher maximum brightness of 500 nits, delivering a brighter screen.

Brightness Comparison

Displays size 14.0-14.9 inches

Lenovo Thinkpad P14s Gen 6

Dell Precision 5490

Min

Average

Max

Lenovo Thinkpad P14s Gen 6 vs Dell Precision 5490 Connectivity Comparison

In terms of connectivity,

Wifi
Both Thinkpad P14s Gen 6 and Precision 5490 support the latest Wi-Fi standard v7.

Below, you'll find a Wi-Fi Versions Table, along with their release dates and speeds, to provide a brief overview of its development.

Wi-Fi Versions and Speeds

Standard	Speed	Release Date	Network	Frequency Bands (GHz)
Wi-Fi 7	up to 40 Gbps (5 GB/s)	2023	802.11be	2.4, 5, 6
Wi-Fi 6E	up to 9.6 Gbps (1.2 GB/s)	2020	802.11ax	2.4, 5, 6
Wi-Fi 6	up to 9.6 Gbps (1.2 GB/s)	2019	802.11ax	2.4, 5
Wi-Fi 5	up to 6.93 Gbps (866.25 MB/s)	2014	802.11ac	2.4, 5
Wi-Fi 4	up to 600 Mbps (75 MB/s)	2009	802.11n	2.4, 5

* Please note that the provided transfer rates are maximum theoretical values, and real-life performance may vary based on environmental factors.

USB
Thinkpad P14s Gen 6 is equipped with 2x USB 3.2 USB-A ports. Precision 5490 does not have USB-A ports.
Both Thinkpad P14s Gen 6 and Precision 5490 have USB Type-C ports. Thinkpad P14s Gen 6 has 2x USB 4.0 USB Type-C ports, while Precision 5490 has 4x USB 4.0 USB Type-C ports.

Below, you'll find a table of USB ports, along with their release dates and speeds.
To mitigate the confusion caused by generation names, the USB Implementers Forum (USB-IF) suggests using marketing names like USB 5Gbps, USB 10Gbps, and so forth, based on their respective transfer rates.

USB Type and Speeds

USB Type	Version	Speed	Date	Other Features/Explanations
USB4	Gen 4 (2.0)	80 Gbps	2022	Also known as USB 80Gbps
USB4	Gen 3×2	40 Gbps	2019	Also known as USB 40Gbps
USB 3.2	3.2 Gen 2x2	20 Gbps	2019	Double the data transfer rates of Gen 2
USB 3.2	3.2 Gen 2	10 Gbps	2017	Previously known as USB 3.1
USB 3.2	3.2 Gen 1	5 Gbps	2017	Previously known as USB 3.0
USB 3.1	3.1 Gen 2	10 Gbps	2013	Faster data transfer rates
USB 3.0	3.1 Gen 1	5 Gbps	2010	SuperSpeed USB, improved data transfer rates
USB 2.0	2.0	480 Mbps	2000	High-speed data transfer
USB 1.0	1.0	1.5 Mbps	1996	Original USB standard

Thunderbolt
Both Thinkpad P14s Gen 6 and Precision 5490 are equipped with Thunderbolt 4 ports.

HDMI
Thinkpad P14s Gen 6 features an HDMI port (1x HDMI 2.1) for connecting to external monitors. Precision 5490 does not have an HDMI port.

Below, you'll find a comparison table detailing different HDMI versions, including their bandwidth, color depth, maximum resolution, and release dates. This information can be helpful in understanding the capabilities of each HDMI version and choosing the most suitable one for your needs.

HDMI Comparison Table

HDMI Version	Maximum Resolution	Bandwidth (Gbps)	Color Depth (bits)	Release Date
HDMI 2.1-2.1b	7680 x 4320 *(8K)* @ 60p 3840 x 2160 *(4K)* @ 120p	48.0	48	2017
HDMI 2.0-2.0b	3840 x 2160 *(4K)* @ 60p	18.0	48	2013
HDMI 1.4-1.4b	3840 x 2160 *(4K)* @ 30p	10.2	48	2009
HDMI 1.3-1.3a	2560 x 1440 @ 60p	10.2	48	2006
HDMI 1.0-1.2a	1920 x 1200 @ 60p	4.95	24	2002

* Please note that the provided resolution values represent the maximum supported resolution, and actual display quality may depend on other factors such as source content and connected devices.

SD Card Reader
Precision 5490 is equipped with an SD Card Reader for easy access to memory cards. Thinkpad P14s Gen 6 does not have an SD Card Reader.

Audio Jack
Both Thinkpad P14s Gen 6 and Precision 5490 are equipped with a 3.5mm Audio Jack, providing seamless connection to headphones and speakers.

To summarize the connectivity and ports details, please refer to the table below to see them listed.

Connectivity and Ports
WiFi Standard (latest: v7)	v7	v7
Bluetooth (latest: v6.2)	v5.4	v5.4
USB-A (latest: 3.2)	2x USB 3.2	No
USB Type-C (latest: USB4 2.0)	2x USB 4.0	4x USB 4.0
Thunderbolt (latest: 5)	Thunderbolt 4	Thunderbolt 4
HDMI (latest: 2.1)	1x HDMI 2.1	No
Display Port (latest: v2.0)	No	No
VGA	No	No
Fingerprint Sensor	Optional	Yes
Optical Drive	No	No
Audio Jack 3.5mm	Yes	Yes
Ethernet RJ45	Yes	No
SD CardReader	No	Yes
Proprietary Charging Port	No	No
